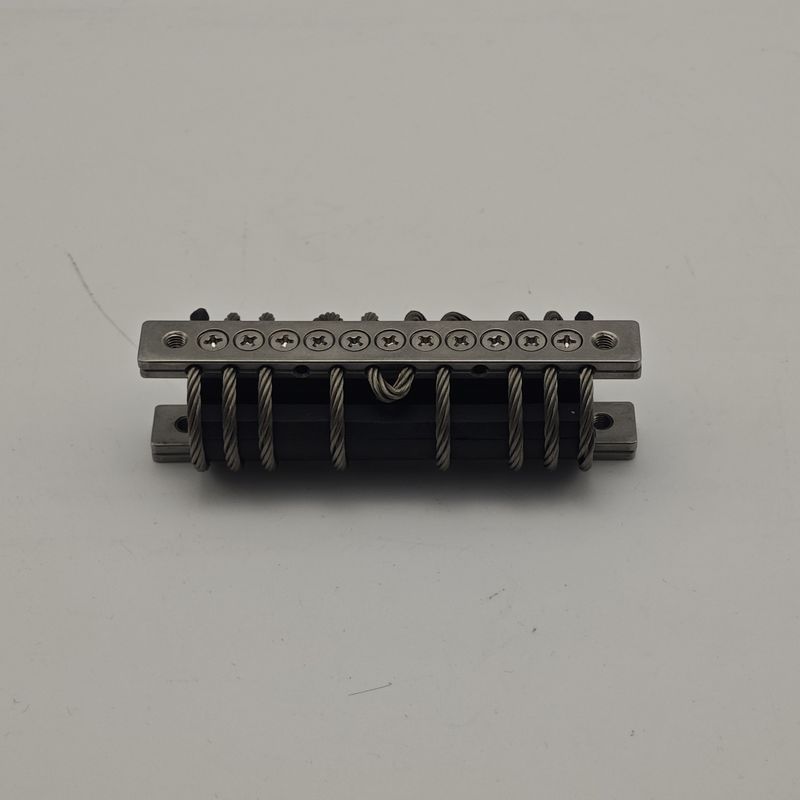

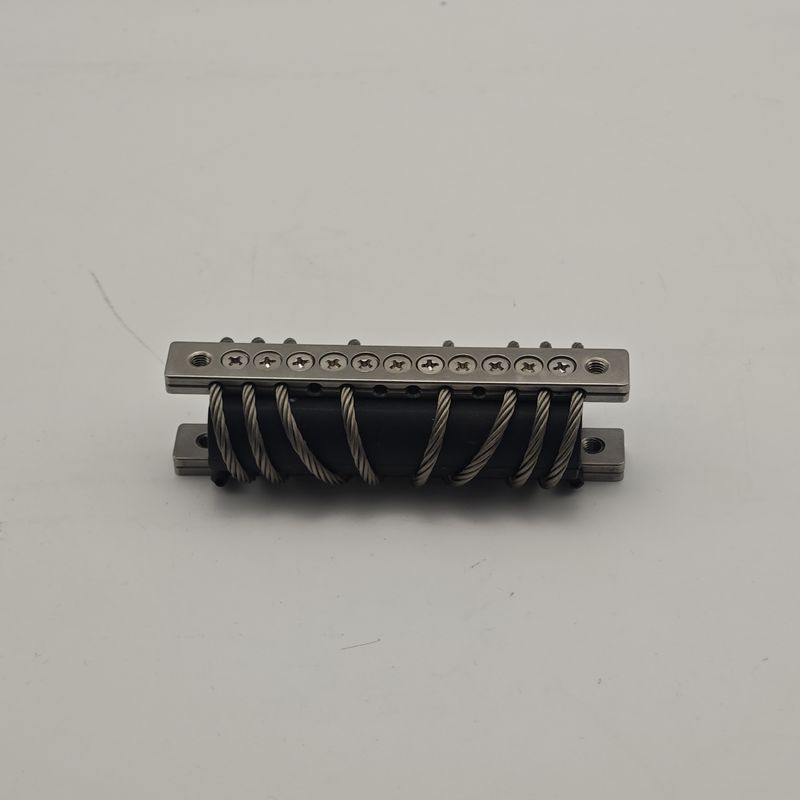

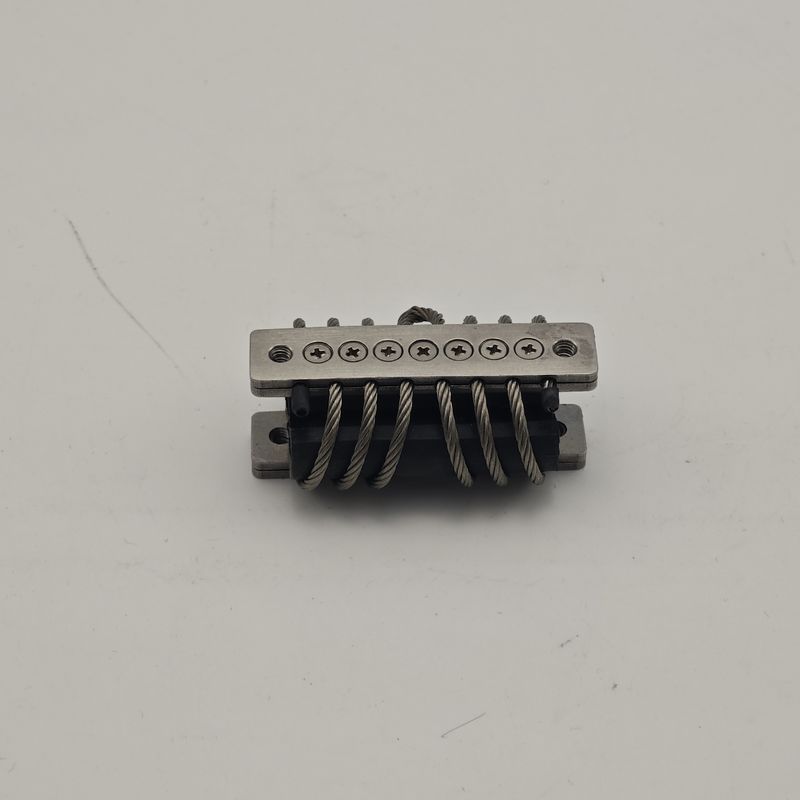

Name: Customized Wire Rope Vibration Isolators for Superior Protection of Sensitive Electronic Devices GX-10AN
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-10A ((N)
Availability: InStock

Σπίτι > προϊόντα > προσαρμοσμένα προϊόντα >

Customized Wire Rope Vibration Isolators for Superior Protection of Sensitive Electronic Devices GX-10AN

Customized Wire Rope Vibration Isolator

Superior Protection Vibration Isolator

Sensitive Electronic Devices Shock Absorber

Τόπος καταγωγής:

Κίνα

Μάρκα:

Hoan

Αριθμό μοντέλου:

GX-10A ((N)

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Customized Wire Rope Vibration Isolators for Superior Protection of Sensitive Electronic Devices GX-10AN

Λεπτομέρειες για το προϊόν

Τρόπος Αποστολής:

Διαφέρει ανάλογα με την προσαρμογή

Προσαρμοσμένο:

Ναί

Αντοχή στην διάβρωση από τη λάσπη:

Εξαιρετική αντοχή στην διάβρωση από σκουριά

Χρόνος ανοχής:

Διαφέρει ανάλογα με την προσαρμογή

αποστολή:

Δια θαλάσσης

Σταθερότητα θερμικού σοκ:

Καλή θερμική σταθερότητα

Χρώμα:

Διαφέρει ανάλογα με την προσαρμογή

Λογότυπο:

Προσαρμόσιμο

Μάρκετινγκ:

Ευρωπαϊκές και αμερικανικές αγορές

Σχέδιο:

Προσαρμόσιμο

Υλικό:

Διαφέρει ανάλογα με την προσαρμογή

Μέγεθος:

Διαφέρει ανάλογα με την προσαρμογή

Τύπος προϊόντος:

Προσαρμοσμένο

Σχήμα:

Προσαρμοσμένο, μη προσαρμοσμένο

Επισημαίνω:

Customized Wire Rope Vibration Isolator

Superior Protection Vibration Isolator

Sensitive Electronic Devices Shock Absorber

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

Όροι πληρωμής

L/C, D/A, T/T, D/P, Western Union, MoneyGram

Συγγενικά προϊόντα

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

Βρείτε την καλύτερη τιμή

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

Βρείτε την καλύτερη τιμή

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

Βρείτε την καλύτερη τιμή

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

86-29-88292913

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

Customized Products Superior Protection for Your Sensitive Electronic Devices GX-10AN Wire Rope Vibration Isolators

GX-N Series

Infusing "Stabilizing Power" into Precision Equipment - Introducing Xi'an Hoan Microwave's GX-N Series Wire Rope Vibration Isolators

In industrial environments where vibration and impact are ubiquitous, how to protect your precision equipment? Drawing on its profound accumulation of military technology, Xi'an Hoan Microwave Co., Ltd. has launched the high-performance GX-N Series wire rope vibration isolators, offering you solid and reliable solutions.

The GX-N Series is no ordinary rubber or spring shock absorber. It uses high-quality stainless steel wire rope as its core elastic component, crafted through precision winding and curing processes. This unique structure endows it with both the durability of metal and the nonlinear vibration isolation properties of springs.

Unlike traditional shock-absorbing materials that are prone to aging and have short fatigue lives, the wire rope itself is corrosion-resistant, resistant to high and low temperatures, and anti-aging - ensuring the isolator operates stably for extended periods even in harsh environments.

Xi'an Hoan Microwave's pursuit of quality is evident in every detail. The GX-N Series has undergone rigorous environmental adaptability and fatigue life tests, guaranteeing minimal performance degradation under continuous vibration and occasional impacts. This means installing a GX-N isolator for your equipment is like purchasing "long-term insurance" - effectively extending equipment lifespan and reducing precision loss and downtime caused by vibration.

Whether for airborne/shipborne electronic devices or laboratory precision instruments, the GX-N Series serves as an ideal "shock-absorbing foundation." We firmly believe that choosing Hoan Microwave means choosing peace of mind and reliability. Explore the GX-N Series now and infuse "Stabilizing Power" into your critical equipment.

Structural Dimension Diagram

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Vibration and Impact Curve of GX-N Series

Vibration

Impact

Technical Parameter Table

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downaward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95
Working Temperature	-55～+120
Shock(Ks)	30g/6ms
Peak Respones G	≤3.5km/s2
Vibration (Kv)	Accord with National Military Standard GJB150-16
