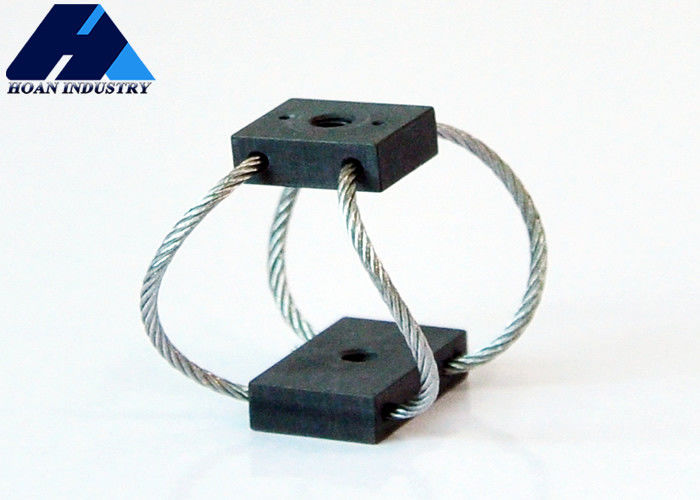

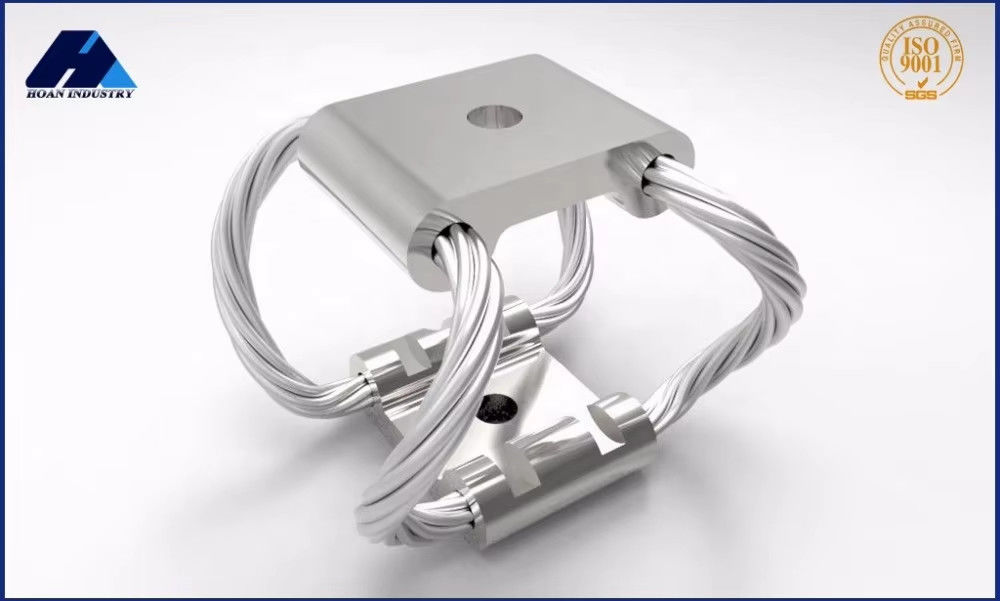

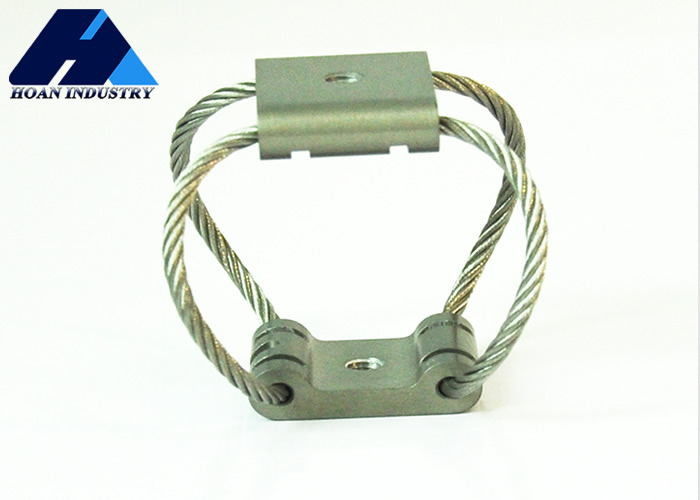

Name: GR6-142A-A Wire Rope Vibration Isolator for Industrial Engine Mounts
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR6-142A-A
Availability: InStock

Σπίτι > προϊόντα > Μονωτής δόνησης σχοινιών καλωδίων >

GR6-142A-A Wire Rope Vibration Isolator for Industrial Engine Mounts

wire rope vibration isolator for engines

industrial engine mount isolator

GR6-142A-A vibration isolator

Place of Origin:

China

Μάρκα:

Hoan

Model Number:

GR6-142A-A

Έγγραφο:

GR6 series Vibration Isolat...or.pdf

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

GR6-142A-A Wire Rope Vibration Isolator for Industrial Engine Mounts

Λεπτομέρειες για το προϊόν

Installation Method:

Mounting or hanging

Diameter:

0.25-2 inches

Operating Temperature:

-40°C to 80°C

Flexible And Durable:

Yes

Structure:

Helical

Isolator Type:

Vibration

Max Static Load:

20-47N(2kg-4.8Kg)

Mounting Hole Size:

Flexibility:

High

Customization:

Available upon request

Maintenance:

Low

Product Certification:

ISO 9001

Installation Type:

Horizontal/Vertical

Applications:

Industrial Engine Mounts

Επισημαίνω:

wire rope vibration isolator for engines

industrial engine mount isolator

GR6-142A-A vibration isolator

Όροι πληρωμής και αποστολής

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Συγγενικά προϊόντα

GR6-67A-A Wire Rope Vibration Isolator for Industrial Machinery

Βρείτε την καλύτερη τιμή

GR6-93A-A Steel Wire Rope Vibration Isolator for Industrial Machinery

Βρείτε την καλύτερη τιμή

GR6-142A-A Wire Rope Vibration Isolator for Industrial Engine Mounts

Βρείτε την καλύτερη τιμή

Απομονωτής κραδασμών συρματόσχοινου χάλυβα GR5-16A-A για κραδασμούς χαμηλής συχνότητας

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

86-29-88292913

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

GR6-142A-A Wire Rope Vibration Isolators

Multi-layer Staggered Arrangement for Composite Vibration Isolation

Product Attributes

Installation Method	Mounting or hanging
Diameter	0.25-2 inches
Operating Temperature	-40°C to 80°C
Flexible And Durable	Yes
Structure	Helical
Isolator Type	Vibration
Max Static Load	20-47N(2kg-4.8Kg)
Mounting Hole Size	M6
Flexibility	High
Customization	Available upon request
Maintenance	Low
Product Certification	ISO 9001
Installation Type	Horizontal/Vertical
Applications	Industrial Engine Mounts

Product Description

GR6 Series

Xi'an Hoan GR6 Steel Wire Rope Vibration Isolator: A Military-grade Industrial Shock Absorption Solution

The GR6 series steel wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd., with their military-grade manufacturing standards, have become a benchmark product in the field of shock absorption for high-precision equipment. This series is formed by winding special stainless steel wire ropes and, through a unique nonlinear structural design, can achieve three-dimensional vibration isolation, effectively attenuating mechanical vibration and impact energy above 5Hz.

Compared with traditional rubber or spring vibration isolators, the GR6 series can still maintain stable performance in extreme temperature environments (-55℃~200℃) without the risk of aging. Test data shows that its vibration transmissibility is less than 0.2, making it particularly suitable for harsh scenarios such as aerospace measurement and control equipment and shipborne radars. The company has passed the ISO9001 quality management system certification.

Dimension Parameter Table

Model	Height (mm)	Width (mm)	Weight (kg)	Mounting Options	Thru Hole (mm)	Thread (mm)	C'sink (°)
GR6-142A-A	47	54	0.91	A,B,C,D,E,S	∅7	M6*1.0	90
GR6-93A-A	55	59	0.99
GR6-67A-A	64	64	0.99
GR6-36A-A	79	73	0.99

Static-Load Curve

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR6-142A-A	142	22.1	32	16
2	GR6-93A-A	93	29.5	20	9.6
3	GR6-67A-A	67	37.6	15	5.3
4	GR6-36A-A	36	51.6	7.9	2.6

Product Material

The material of the mounting splint

Stainless Steel or Aluminum can be selected

Surface treatment options for aluminum alloy mounting cleats

White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars.
Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

Unique Characteristics of Xi'an Hoan's Vibration Isolators

No creep or ageing
High internal damping
Very wide temperature range
Wide variety of possible fittings
Rapid and economical prototyping
Extremely rugged construction and long lifespan
Excellent combined shock and vibration isolation
Not affected by chemical agents, seawater, ozone, UV rays
